Prosport

Prosport JDM Series Oil Pressure Gauge

SKU: PSG216JDMOP-R.PSI
(0)
Only 1 left
Low inventory - Hurry up!
$132.08

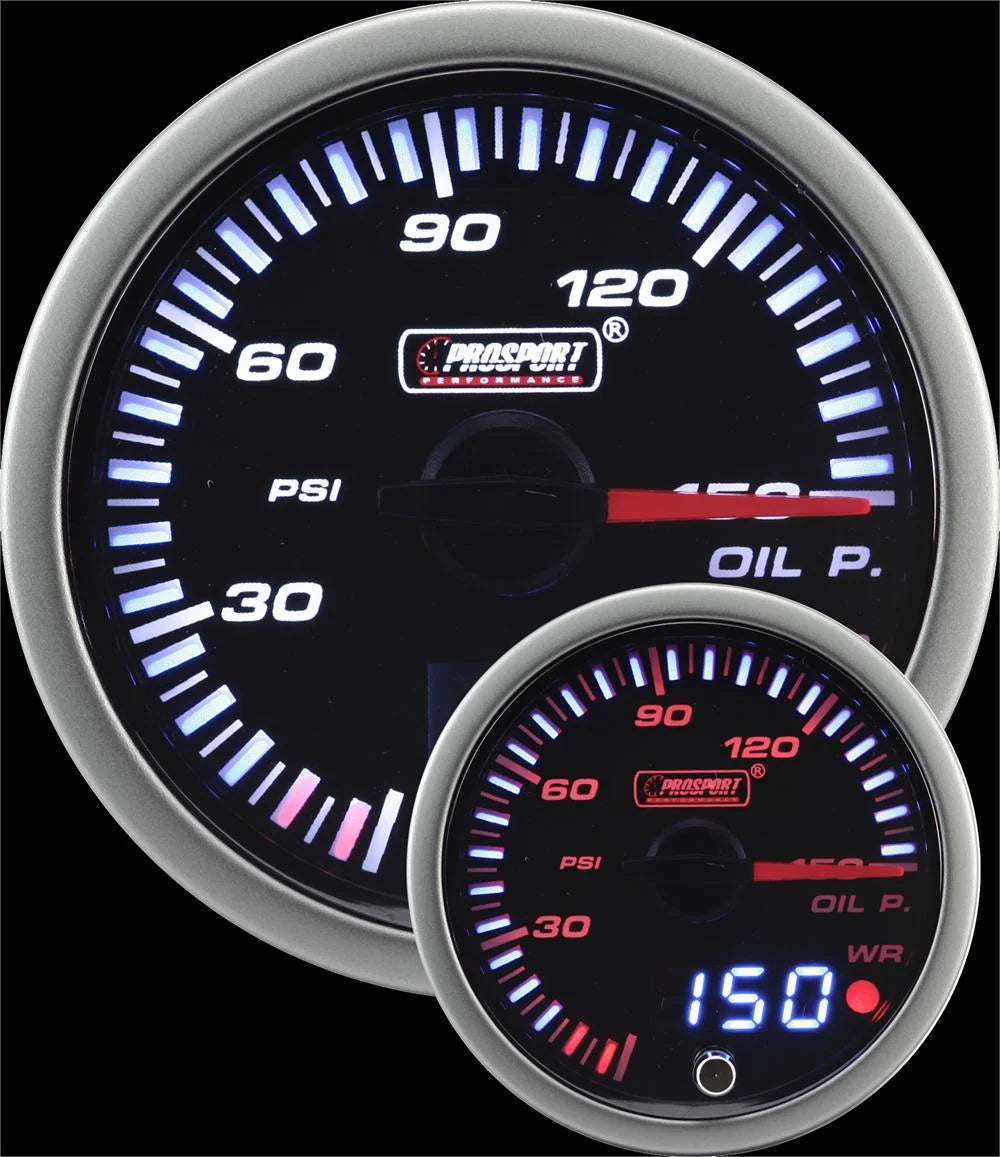

52mm JDM Electric Oil Pressure gauge
0-150 psi range

Don't trust your factory gauge for important monitoring of engine functions. By the time your factory idiot light comes on the damage is already done. Monitor you engine functions with one quick glance and notice any problems before it is catastrophic.

Features:

  • Whisper quiet and lightning fast Japanese Stepper Motor Movement
  • Analog and digital display
  • Pointer trailing LED's
  • Fully programmable Warning feature
  • Daisy chain
  • Premium waterproof sender
  • Includes wire harness (gauge to sender -plug and play)
  • 2 color choices
  • Mounting base
  • Visor
  • Free tech support
Each JDM Series gauges will perform a pointer sweep/self check on start up

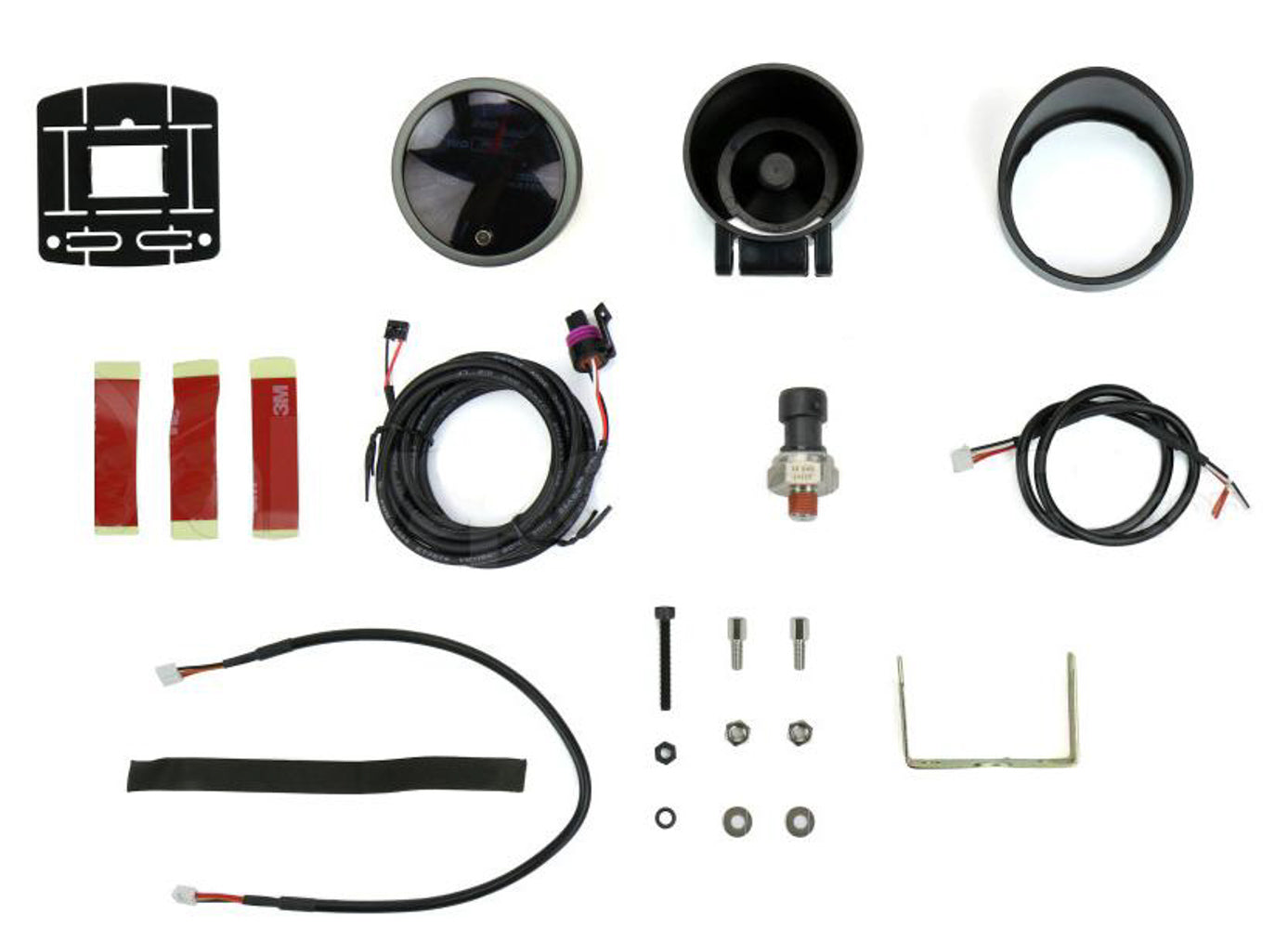

(0-150 PSI includes: Plug and play waterproof wiring harness, Premium oil pressure Sender 1/8" NPT threads, mounting cup, decal and Instructions)



Product Line
JDM Series
Gauge Type
Oil Pressure
Stepper Motor
Yes
Programable
Yes
Primary Increment
2 PSI
Gauge Diameter (in)
2-1/16 in
Gauge Diameter (mm)
52.4 mm
Mechanical/Electric
Electric
Primary Low Range
0 PSI
Primary High Range
150 PSI
Sweep
Full
Lighted
Yes
Light Style
LED
Light Location
Front
Light Color
White | Blue | Red
Warning Light
Yes
Face Color
Black
Bezel Color
Silver
Primary Number Color
White
Secondary Number Color
Blue
Pointer Color
Red
Sender Included
Yes
Sender Thread
1/8 in NPT
Inlet Port Thread
1/8 in NPT
Mounting Bracket
Yes
